Recent legislation is impacting the use of hydrofluorocarbon (HFC) refrigerants, both globally and nationally. On the heels of these changes is confusion about legislation and the availability of certain types of refrigerants. On a global scale, the Kigali Amendment to the Montreal Protocol provides a global phase-down schedule for the use of HFC refrigerants in multiple sectors - including R-134a and R-410A - for the HVAC/R industry. While ratified across the globe by approximately 100 countries to date, the amendment has yet to be ratified in the United States.
In 2016, the United States Environmental Protection Agency (EPA) put forward rules that banned the sale and installation of many types of commercial refrigeration systems using high global warming refrigerants. However, after litigation, the EPA was told it lacked the authority to tell manufacturers that had already moved to HFCs that they now had to move away from HFCs. However, most refrigeration equipment manufacturers had already moved forward with engineering low global warming options.
Most regional efforts to reduce the use of refrigerants with higher-GWP (Global Warming Potential) ratings call for a gradual reduction of HFCs rather than a complete phase-out or ban. The U.S. Climate Alliance currently has 24 member states and aims to reduce greenhouse gas emissions by at least at least 26-28 percent below 2005 levels by 2025 in accordance with the Paris Agreement.
States such as California, Washington, New York, and Colorado, as well as several others, are proceeding with their own individual HFC phase-down programs in the absence of the federal SNAP Rules with the majority aligning with the SNAP 20 and 21 sectors. Refrigerants such as R-134a and R-410A continue to be the most widely used refrigerants in the HVAC industry globally, federally, and regionally, but are a key focus of state regulations due to their higher GWP values.
Economics Drives Refrigerant Transitions

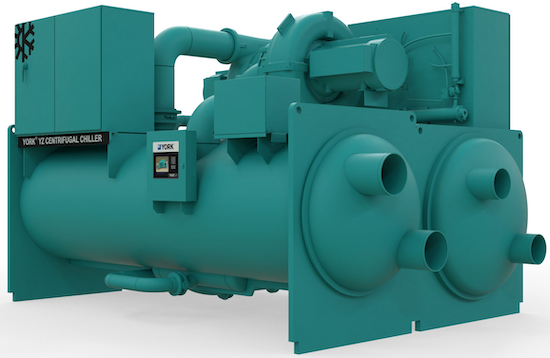

Legislation is a factor in refrigerant transitions, but it is not the main factor. Building owners typically transition to new refrigerants when existing equipment becomes too expensive to operate or when the incumbent refrigerant becomes unavailable. A properly maintained chiller can run well past the expected equipment lifetime, regardless of the type of refrigerant used.
HVAC equipment should be replaced when an analysis of new equipment costs versus operating costs provides a good payback scenario or when the refrigerant used in the system is not readily available or becomes too expensive to replace.
After a refrigerant is completely banned by legislation, a limited supply often continues to be produced for servicing. The Montreal Protocol allowed a 10-year service tail for hydrochlorofluorocarbon (HCFC) refrigerants R-22 and R-123 after they were banned from production in new equipment sales. When the service tail production ends the only remaining refrigerant sources are reclaimed and recycled refrigerant from existing equipment. It is critical that all recycled refrigerant is reprocessed back to its original specifications by a reputable reclaimer before being used in a different system.
Cost and Availability Concerns
Refrigerant price varies by availability and by region. Service tail production is limited in quantity and availability which typically causes the refrigerant price to increase as the service tail allowance runs out. New low-GWP refrigerant alternatives are typically more expensive than the incumbent, higher GWP refrigerants. Many lower-GWP alternatives are globally applied and available, but some have very limited production and use.
The Kigali Amendment proposes a partial phase-down schedule for HFC refrigerants, not a total ban. There is no legislation in any region that completely bans the use or production of R-134a or R-410A. In addition, R-134a and R-410A refrigerants currently do not have to be converted to lower-GWP alternatives and chillers utilizing R-134a and R-410A do not have to be replaced with lower-GWP alternatives. To date, servicing of existing equipment is also not affected by global or federal legislation but could be considered in future regulations if reduction commitments are not being achieved.
Evaluating Total System Emissions
Almost all greenhouse gas emissions attributed to HVAC systems are from the carbon dioxide (CO2) released into the environment during the production of electrical power that is used to run the chiller. It is imperative to focus on the operating efficiency of a HVAC system and the guarantee that it consumes the lowest amount of energy possible, rather than focusing solely on the refrigerant properties.
Of the utmost importance with a chiller or complete HVAC system is operating efficiency and its ability to consume the lowest amount of energy possible.
GWP quantifies the amount of global warming equivalence a refrigerant has when compared to CO2. Refrigerant GWP can be evaluated with the emissions generated from consumed energy for a complete view of environmental impact. Calculating the total equivalent warming impact (TEWI) involves totaling the chiller’s direct and indirect emissions. Indirect emissions are defined as the CO2 emissions from the energy generated to operate a chiller, while direct emissions are refrigerant emissions from possible refrigerant leakage, maintenance and end-of-life refrigerant recovery.
Emissions however do vary by sector and product. Direct-emitting applications such as aerosols and foams release refrigerant gas with every use. Automobiles tend to have higher refrigerant leakage rates due to the bumpy and constant motion of a vehicle. Stationary chillers are engineered to have very low or zero refrigerant leakage rates, and with proper maintenance and end-of-life recovery processes, chillers will have almost no direct refrigerant impact to the environment.
Refrigerant gas can only directly impact the environment if it is released into the earth’s atmosphere. Non-emitting systems - such as chillers - should not be limited to low-GWP refrigerant alternatives that cause the system operation to be less efficient. Chiller operating efficiency greatly outweighs refrigerant GWP effects on the environment and small improvements in equipment efficiency can negate potential direct refrigerant emissions. The ultimate goal is to select refrigerants that allow for the highest overall system efficiency with a lower GWP.

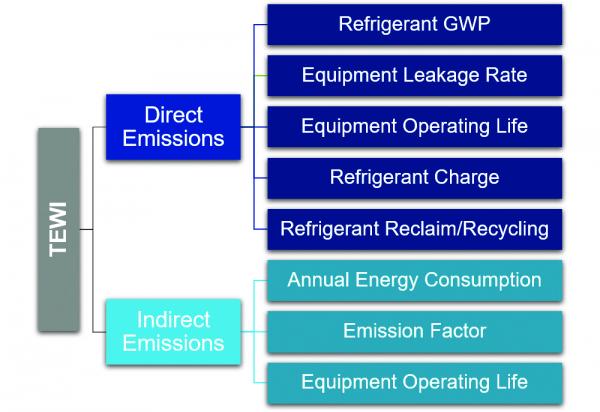

Total Equivalent Warming Impact (TEWI) is calculated by combining the direct and indirect greenhouse gas emissions from operating a chiller.
Considerations when Selecting a Refrigerant
There are several important factors to consider when selecting a new hydrofluoroolefin (HFO), low-GWP refrigerant. Some of the recently introduced HFC alternatives were released only in limited quantities or - in some markets - not at all. The challenge is understandable since it takes time for production to ramp up and for supply chains to be established. However, this lack of availability creates risk for technicians and building owners.
Efficiency and reliability are also extremely important. Improved operating efficiency reduces the energy used, which lowers indirect emissions that can be responsible for 95% or more of total global warming emissions of a chiller. A secondary advantage is the reduction of the quantity of refrigerant. One of the most critical aspects of refrigerant selection is safety. The flammability and toxicity of a refrigerant must also be considered. For example, a new refrigerant might appear to be acceptable based on GWP and availability, but its toxicity classification may make it unacceptable for specific applications.

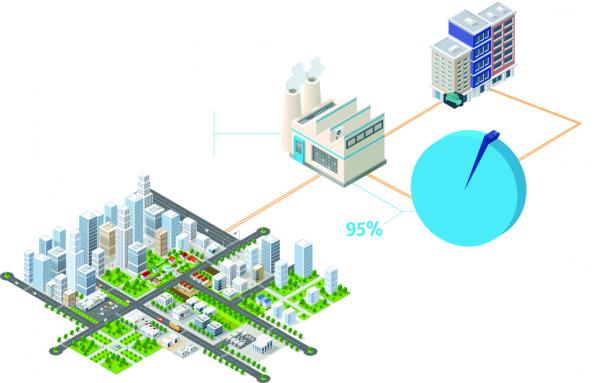

Indirect emissions due to energy consumption account for almost all greenhouse gas emissions from a chiller.
The Long View of New Refrigerants
Each refrigerant transition introduces new challenges for HVAC/R owners and facility maintenance staff. Evaluating the economic implications of new refrigerant alternatives is a major focus for current and future technology developments.
Energy consumption of HVAC/R systems has the greatest impact on operational cost - it is typically more expensive than the installation and first cost of system equipment. Purchasing energy-efficient equipment with potentially higher first cost can often be offset by continued operational savings over the lifetime of the system. Payback analysis is available to compare a wide range of system efficiencies and equipment types.
New refrigerants must also provide long-term HVAC/R solutions that avoid premature obsolescence of large capital investments. Competitive refrigerant technologies encourage continued growth in the HVAC industry and multiple supply chains are ultimately required to support the end-user’s aftermarket needs.
